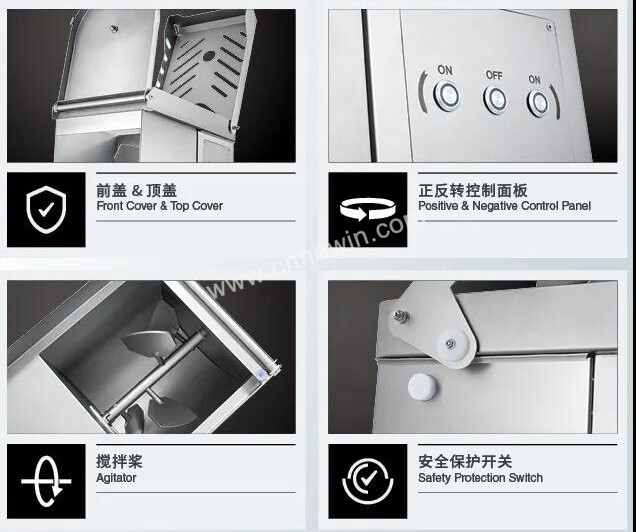

Product Structure
- AISI304 stainless steel body.
- Oil bath gear reducer, special process helical gear.
- Gearbox with double sealing system IPX5 air-cooled motor, suitable for continuous work.
- Safety protection switch for shutting down when the lid is opened.

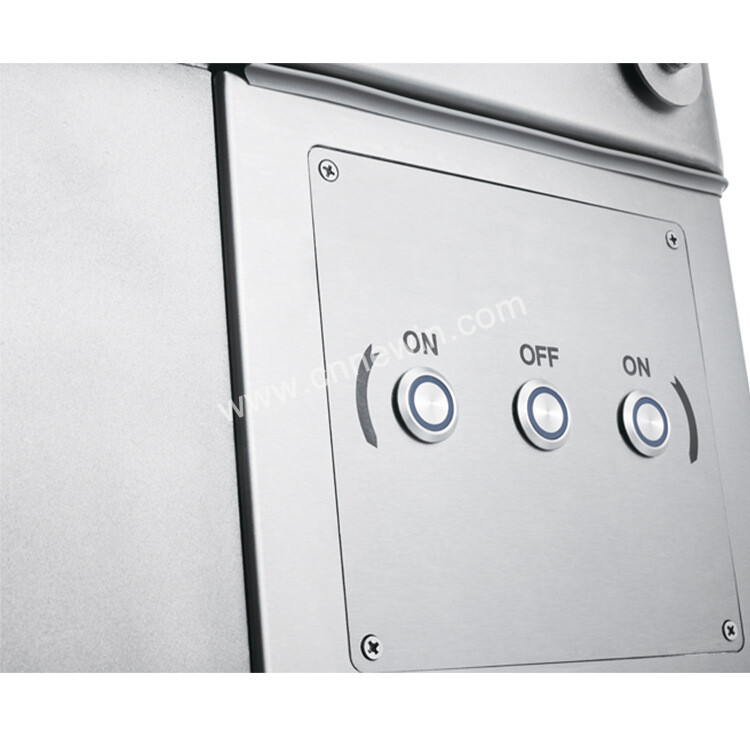

- Meat Mixer IP54 forward and reverse control buttons.
Applicable Place
Butcher shop, Hotel & Supermarket …



Technical Parameter
Model | DX-20 |
Capacity | 30L /20 kg |
Power | 550W |
Voltage | 220V 50HZ Single phase |
Machine size | 528*319*575mm |
Packing size | 550*370*615mm |
Net weight | 40kg |
Gross weight | 42kg |

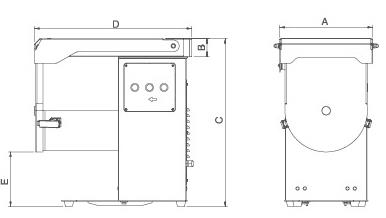

Structure size decomposition (mm) | |
A | 319 |
B | 60 |
C | 575 |
D | 528 |
E | 193 |
F | 280 |
