MEAT CUTTER BASIC INFORMATION
Advantages: The knife set can be removed and washed. After each use, just clean the knife set and store it in the freezer below 0 °C.
Features: if the meat pieces of different thickness are processed, only the corresponding tools can be replaced. The machine is equipped with a safety switch. When the tool is exposed, the machine cannot be activated by self-locking.
QX/QH meat cutter
Uses: Desktop meat cutting machine, single-layer cutter cuts the meat once, cuts the pork twice, and cuts into granules.
Features: The cutter adopts the external cantilever design, the washing and dismounting is convenient, and the hygiene is more secure;
meat cutter machine of parameter
| Model | QX | QH |
| Voltage | 220V/110V | 220V/110V |
| Power | 0.55KW | 0.55KW |
| Cutting thickness | 2.5mm-20mm | 2.5mm-20mm |
| Weight | 35KG | 37KG |
| Dimension | 450*310*430MM | 530*330*450MM |
| Output | 250KG/H | 500KG/H |
QE meat cutter machine
Uses: Floor-type meat cutting machine, single-layer cutter cuts the meat once, cuts the pork twice, and cuts into granules.
Features: The base has wheels, the movement is flexible, the cutter adopts the external cantilever design, the washing and dismounting is convenient, and the hygiene is more secure;
meat cutter electric of parameter
| Voltage | 220V/110V |
| Power | 0.55KW |
| Cutting thickness | 2.5mm-50mm |
| Weight | 37KG |
| Dimension | 530*320*680MM |
| Output | 500kg/hour |
QV MODEL
Uses: Floor-type meat cutting machine, single-layer cutter cuts the meat once, cuts the pork twice, and cuts into granules.
Features: The base has wheels, the movement is flexible, the cutter adopts the external cantilever design, the washing and dismounting is convenient, and the hygiene is more secure;
parameter
| Voltage | 380/220V/110V |
| Power | 110V 550W
380V/220V 750W |
| Cutting thickness | 2.5mm-30mm |
| Weight | 70KG |
| Dimension | 680*380*790MM |
| Output | 800kg/hour |
QSJ-T MODEL
（All Stainless Steel Frame）
Uses: Small bench-top meat shredder, double-layer cutter, one-time shredding, and the lower-layer cutter can cut the meat.
Features: The tool adopts an external cantilever design, which is convenient for washing and dismounting, and has more sanitary protection.
parameter
| Voltage | 220V/110V |
| Power | 0.55KW*2 |
| Cutting thickness | 2.5mm-10mm |
| Weight | 66KG |
| Dimension | 440*460*550MM |
| Output | 250kg/hour |
QSJ-A MODEL
（All Stainless Steel Frame）
Uses: Medium-sized ground-cut meat shredder, double-layer cutter, one-time shredding, and the lower-layer cutter can cut the meat.
Features: The tool adopts an external cantilever design, which is convenient for washing and dismounting, and has more sanitary protection.
parameter
| Voltage | 380V/220V/110V |
| Power | 0.55KW*2 |
| Cutting thickness | 2.5mm-15mm |
| Weight | 78KG |
| Dimension | 510*530*870MM |
| Output | 500kg/hour |
QSJ-B/QSJ-G MODEL
（All Stainless Steel Frame）
Uses: Large-scale ground-cut meat shredder, double-layer cutter, one-time shredding, and the lower-layer cutter can cut the meat.
Features: The tool adopts an external cantilever design, which is convenient for washing and dismounting, and has more sanitary protection. If you process different thickness of meat, pork and meat, you only need to replace the corresponding tool. The machine is equipped with a safety switch. When the tool is exposed, the machine cannot be activated by self-locking.
parameter
| Model | QSJ-B | QSJ-G |
| Voltage | 380V/220V/110V | 380V/220V/110V |
| Power | 110V:0.55KW*2 220V/380V:0.75KW*2 |
110V:0.55KW*2 220V/380V:0.75KW*2 |
| Cutting thickness | 2.5mm-25mm | 2.5mm-25mm |
| Weight | 138KG | 138KG |
| Dimension | 665*690*930MM | 750*970*930MM |
| Output | 800kg/hour | 800kg/hour |
QJ/QD MODEL
Uses: Reinforced medium and large meat slicer, the assembly cutter cuts the meat once, cuts the pork twice, and then cuts into granules.
Features: Meat cutting machine assembly, integrating bearing, sprocket and gear, the supporting side plates and the frame on both sides are connected by screws. Easy to replace. The blades are made of special stainless steel for durability.
parameter
| Model | QJ | QD |
| Voltage | 380V/220V/110 | 380V/220V |
| Power | 110V 550W ;220V/380V 750W | 1500W |
| Cutting thickness | 3mm-30mm | 4MM or more |
| Weight | 78KG | 10KG |
| Blade diameter | 105mm | 143mm |
| Dimension | 590*460*910MM | 690*640*910MM |
| Output | 800kg/hour | 1500kg/hour |
DJB MODEL
（All Stainless Steel Frame）
Uses: Large-scale cutting meat granulator, three-layer knives, a total of three knives, cut into pieces at a time (extracting the lower knives can cut meat, shredded pork).
Features: The cutter adopts an external cantilever design, which is convenient for disassembly and washing, and has more sanitary protection. If you want to process different thick and thin pieces of meat, pork and meat, you only need to replace the corresponding tools to achieve it. The machine is equipped with a safety protection switch. When the tool is exposed, the machine cannot be activated by self-locking to ensure safety. The blades are made of special stainless steel for durability.
parameter
| Voltage | 380V |
| Power | 750W*3+370W*1 |
| Cutting thickness | 3mm-20mm |
| Weight | 230KG |
| Rotating speed | 160r/m |
| Dimension | 1260*680*920MM |
| Output | 800kg/hour |
DL MODEL
（All Stainless Steel Frame）
Uses: Extra large meat slicer, the assembly cutter cuts the meat at a time, cuts the pork twice, and then cuts into granules.
Features: Meat cutting machine assembly, using φ143MM blade, integrating bearing, sprocket and gear. The support side plates on both sides are connected to the frame by screws, which is convenient to replace. The blades are made of special stainless steel for durability.
parameter
| Voltage | 380V |
| Power | 2200W |
| Cutting thickness | 6mm or more |
| Weight | 155KG |
| Feed port length | About 500mm |
| Dimension | 1260*680*920MM |
| Output | 3000kg/hour |

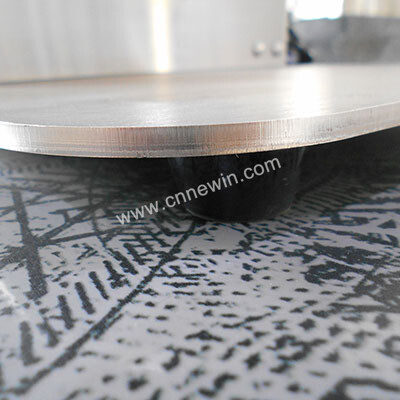

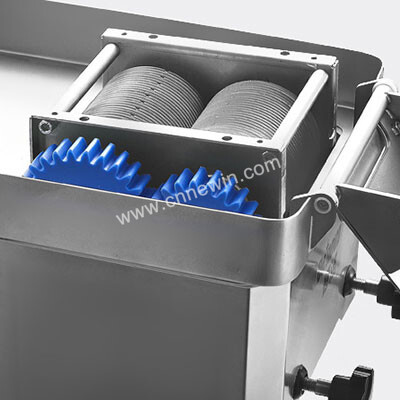

ds-100d meat cutting machine
best meat cutter parameter
| Model | DS-100D |
| Capacity | 250kg/h |
| Power | 370W |
| Voltage | 220V 50HZ |
| Machine size | 320*470*490mm |
| Packing size | 400*550*610mm |
| Net weight | 40kg |
| Gross weight | 45kg |
| Thickness | 3.5mm |

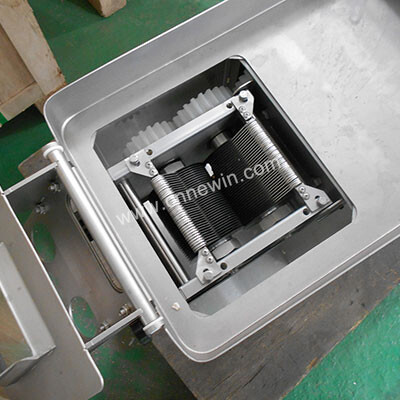

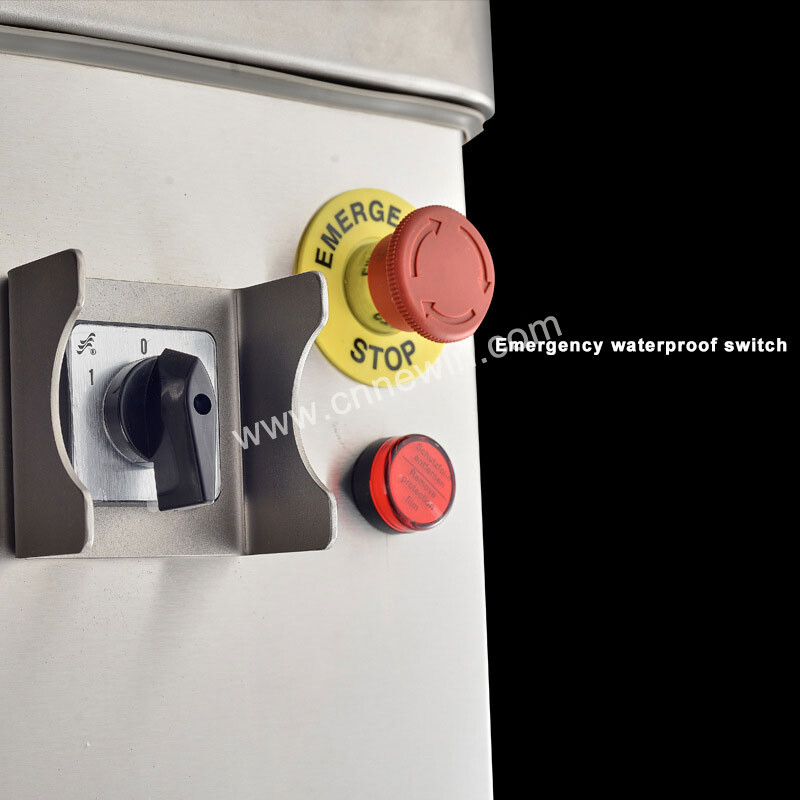

ds-130/ds-180 meat cutter
meat cutter machines parameter
| Model | DS-130 | DS-180 |
| Capacity | 350kg/h | 500kg/h |
| Power | 550W | 550W |
| Voltage | 220V-240V 50HZ | 220V-240V/380V 50HZ |
| Machine size | 500*362*850mm | 500*412*850mm |
| Packing size | 570*430*950mm | 570*480*950mm |
| Net weight | 56kg | 77kg |
| Gross weight | 73kg | 96kg |
| Thickness | 2-30mm | 2-30mm |
ds-200d meat cutter
| Model | DS-200D |
| Capacity | 1000kg/h |
| Power | 1.5KW |
| Voltage | 380V 50HZ |
| Machine size | 490*600*1025mm |
| Packing size | 565*685*1210mm |
| Net weight | 90kg |
| Gross weight | 115kg |
| Thickness | 3.5mm |
ds-300d meat cutter
| Model | DS-300D |
| Capacity | 1000kg/h |
| Power | 3000W |
| Voltage | 380V 50HZ |
| Machine size | 659*540*935mm |
| Packing size | 750*640*1120mm |
| Net weight | 138kg |
| Gross weight | 168kg |
| Thickness | 3.5mm |
